| 主要技術參數 | SPECIFICATION | UNIT | QKD1325 | QKD1330 | QKD1335 | |
|
加工范圍 Capacity |
床身上最大回轉直徑 | Swing over bed | mm | 800 | 900 | |
| 橫滑板上最大回轉直徑 | Swing over cross slide | mm | 435 | 535 | ||
| 最大工件長度 | Distance between centers | mm | 1000-3000 | 1000-3000 | ||
| 加工管螺紋直徑范圍 | Pipe threading range | mm | 50-235 | 110-290 | 110-340 | |

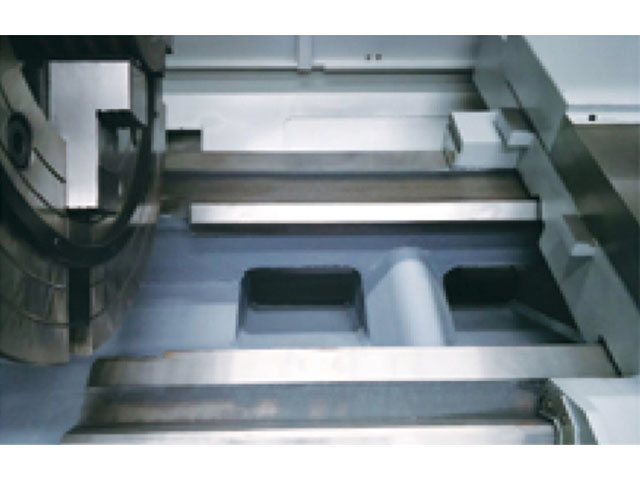

| 床身導軌寬度 | Guideway width | mm | 755 | 755 | 755 | |
| 床身承重范圍 | Max.load capacity | T | 5 | 5 | 5 | |
|
主軸 Spindle |
主軸孔徑范圍 | Spindle bore | mm | 240 | 305 | 355 |
| 主軸轉速級數 | Spindle speed steps | - | 無極變速/Stepless | 無極變速/Stepless | ||
| 主軸轉速范圍 | Spindle speed range | rpm | 90-450 | 90-350 | 90-350 | |

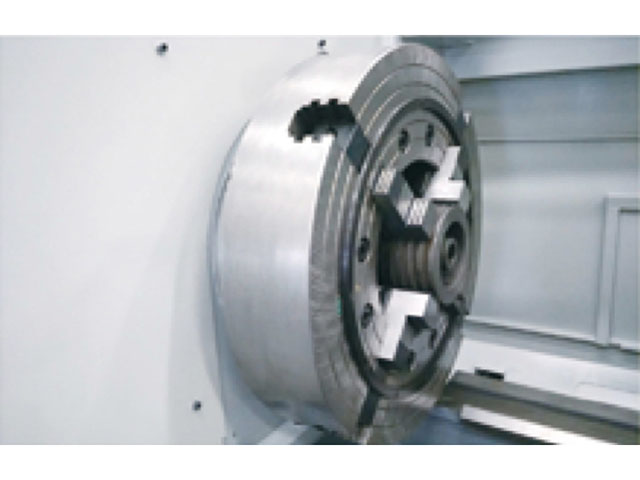

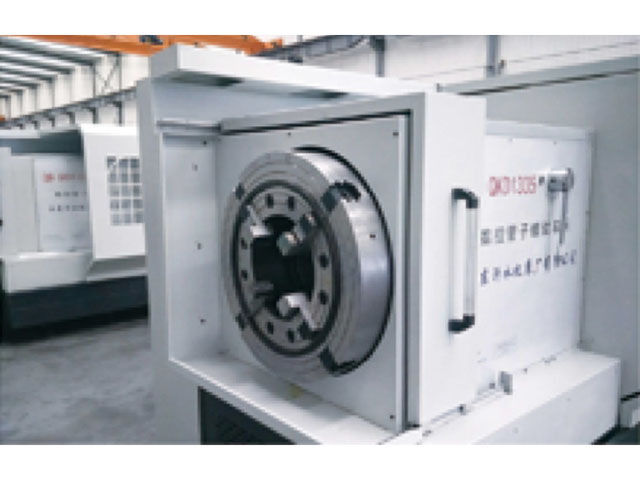

| 卡盤規格 | Chuck | mm | φ630電動復合四爪卡盤/φ630 4-jaw electric | φ780電動復合四爪卡盤/φ780 4-jaw electric | ||
|
刀架 Turret |

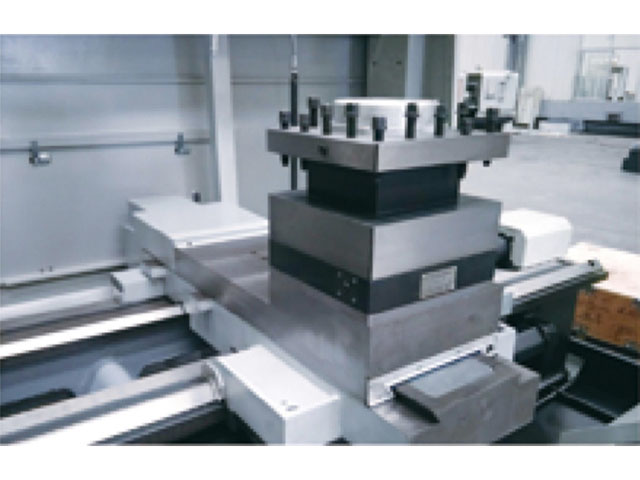

刀架類型 | Turret/tool post | - | 4工位電動刀架/NC turret 4 position | 4工位電動刀架/NC turret 4 position | |
| 刀具尺寸 | Tool shank size | mm | 32×32 | 40×40 | 40×40 | |
|
進給 Feed |
X軸行程 | X axis travel | mm | 480 | 480 | 480 |
| Z軸行程（無尾座） | Z axis travel (without tailstock) | mm | 1000-3000 | 1000-3000 | 1000-3000 | |
| X軸快速進給速度 | X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | |
| Z軸快速進給速度 | Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | |
|
電機 Motor |
伺服主軸電動機 | Main spindle motor | kW | 22 | 22 | 22 |
| 冷卻泵電機 | Coolant pump motor | kW | 0.25 | 0.25 | 0.25 | |
|
尺寸 Dimension |
寬度W×高度H | Width × Height | mm | 2050×2050 | 2050×2050 | 2050×2050 |
| 長度L | Length | mm | 3952/5950 | 3952/5950 | 3952/5950 | |
|
重量 Weight |
機器凈重 | Net weight | T | 8.1-10 | 8.9 | 10.9 |
